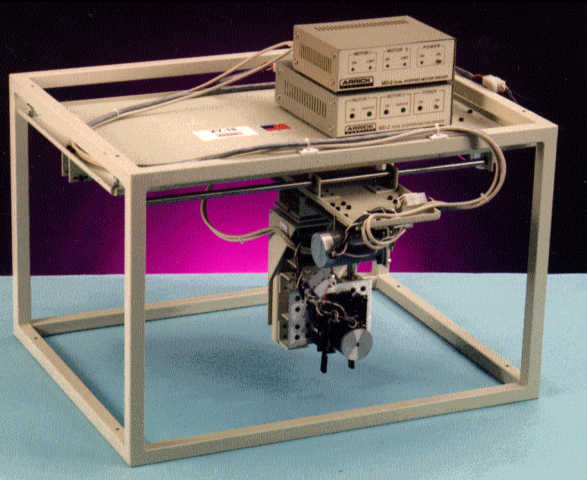

9"x9"x2" 3-Dimensional Robotics Work Station (RW-9B)
Price: $3,199.95
Now's the time to automate those tasks currently being performed manually. By combining our MD-2 stepper motor systems with our XY positioning table and a gantry stand, a complete robotic workcell can be created. Our Z-2 Positioning Table is added to create 3-axis motion. In many cases, an XYZ robotic workcell can replace a very elaborate robotic system at a fraction of the cost. Just connect to your personal computer, attach a tool, and your system is complete. Add our GR-2 Gripper for even more capability. Robotic workcell packages come complete with motor control systems, positioning tables, hardware and an accessory kit which includes a parallel printer port, cables, cable mounting hardware, and a T-handle hex wrench.
You will:
Supply a personal or
industrial computer.
Mount the components
together (instructions provided).
Route cables from motors to MD-2 drivers
(hardware included).
Attach your tool (may require custom made
hardware).
Load the MD-2 software.
Set motor parameters.
Program the
desired motion.
Increase Performance with a PR23 Pulley Reducer
Add two PR23-2.5 pulley reducers for the X and Y axis of your
robotic workcell to achieve faster speeds, more torque, and a resolution of
.002" per step.
Includes:

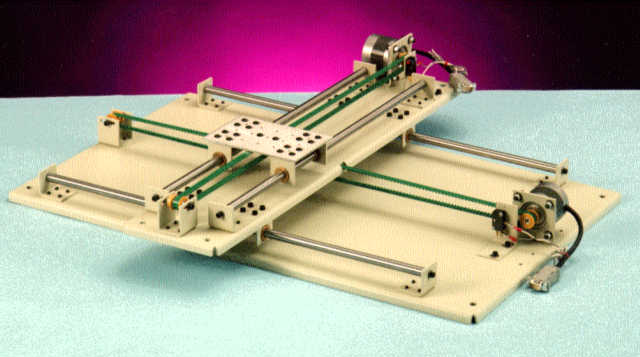

- XY-9 9" x 9" Positioning Table

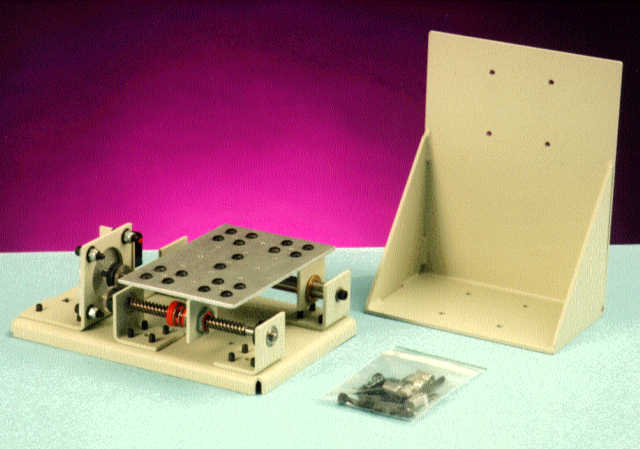

- Z-2 2" Positioning Table

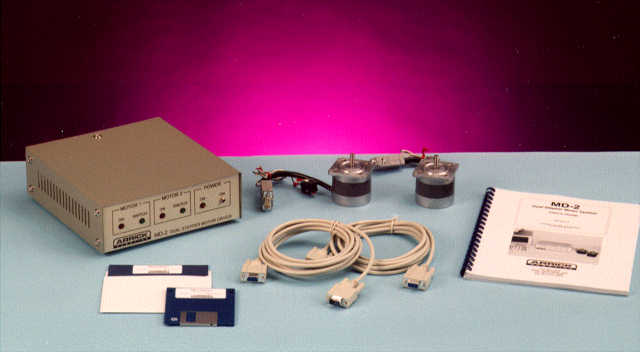

- MD-2b Dual Stepper Motor Control System
- MD-2a Dual Stepper Motor Control System
- ST-9 Gantry Stand
- BR-2 Right-Angle Bracket for mounting the Z axis
- Accessory package, cables, parallel port, tools, etc.
| Model | RW-9b |
|---|---|
| Travel | 9" x 9" x 2" |
| Maximum Payload | 5 pounds |
| Accuracy | +/-.010" per foot |
| Resolution | .005" per .9 degree step |
| Repeatability | .005" |
| Maximum Speed | 6" per second |
